Recessed Led Downlight Trimless Cutout 55mm 12W 15W For Interior Lighting Solution

  1. Compact Led Downlights Mini Cutout 55mm Make High Power 12W-15W.
  2. Aluminum Heat Sink With Excellent Thermal Dissipation And Aluminum Reflector.
  3. Recessed and Trimless Embedded Installation Optional.
  • Item No :

    Recessed Downlight
  • Order(MOQ) :

    50pcs
  • Payment :

    TT
  • Lead Time :

    10-15Days

Specification





Model No. SL-HN055 01 SL-HN055 02
Watt (±10%) 12W 12W
15W 15W
Beam Angle 15°/24°/36°/50°  15°/24°/36°/50°
Dimension ø60*H110mm ø83xH110mm
Cutout ø55mm ø55mm



CCT 2700K/3000K/3500K/4000K/5000K
CRI Ra90
IP Rating IP20
Install style Recessed
Optional Control Triac/0-10V/DALI
Operating temperature -20℃-+40℃
Beam Angle 15°/24°/38°/50°
Ouput voltage 220-240V 50/60Hz
Material Aluminum
Control On/Off
Housing Color Matt White/ Matt Black
Certificate CE CB SAA
Warranty 3-5 years
Applications Hotels, Villa,Restaurants, Offices, Shopping Mall, Residental,etc.









Product Features:



  • Led Chip

Using International Famous Brand Led Chip COB Osram/Cree/Bridgelux ,With High Brightness, Long Life, Small Light Decay, And Good Heat Dissipation Effect.

Widely CCT Range 2700K/3000K/3500K/4000K/5000K/5500K For Customers To Choose From .

And High Color Rendering Index Ra90 /Ra97 To Meet The Lighting Requirements Of Different Scenes And Needs.



  • Optical Flexibility

To Meet Different Lighting Requirements,This Model Led Downlights Offer Optical Flexibility With Multiple Beam Angle Options. You Can Select From Beam Angles Of 15, 24, 36 ,50 Degrees, Providing Versatility In Lighting Distribution.



  • Led Driver

Constant Current Driver Output With Flicker Free, Provide High Work Efficiency And Stable Performance.(PF0.5/ PF0.85/PF0.95 Optional.)

Dimmable And Non-Dimmable Led Driver Solution Available.

Triac Dimming, 0/1-10V And DALI Dimming For Different Demands Of Project Lighting Solution.



  • Material

Die-Casting Aluminum Lamp Housing ,Long-Term Pressure Is Not Easy To Deform, Durable, Anti-Corrosion And Anti-Rust. High Quality Aluminum Heat Sink With Excellent Thermal Dissipation.



  • Anti Glare Design

Deep Anti Glare Design Of The Lamp Structure,The Led Chip Deep Hide In The Lamp Body ,Ultra Low Glare Rate.The Aluminum Reflector Height Is High,And Matt Black Or Darken Nickel Color Reflector Finish,No Dazzing Lighting.

Changeable Reflector With Multifarious Color For Choose According To Room Decoration Style,Sand Silver/Sand Gold,Matt White/Matt Black, And Electropaint Darken Nickel/Gold/Chrome For Choose.



  • Easy Installation And Maintenance

The Model Downlights Have a Simple And Easy-To-Use Installation Method,

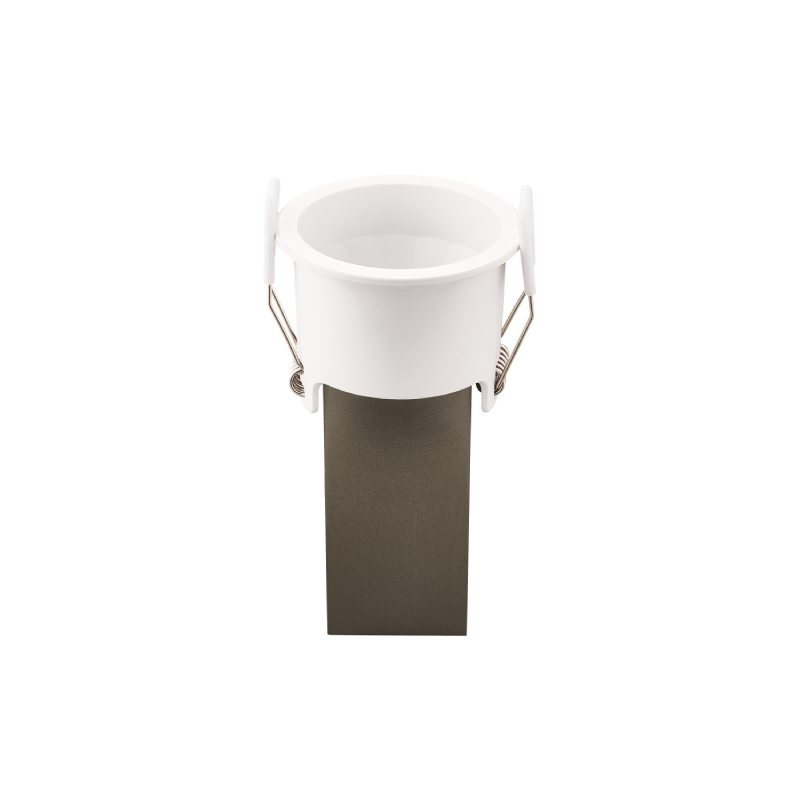

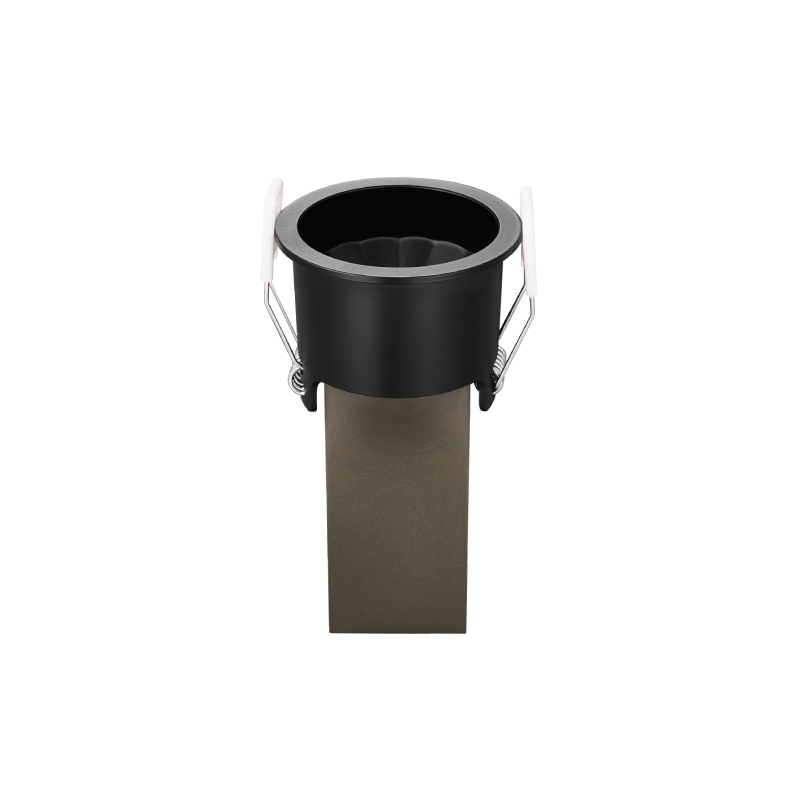

Recessed Downlight With Trim, Install The Downlight With Clips On The Ceiling.

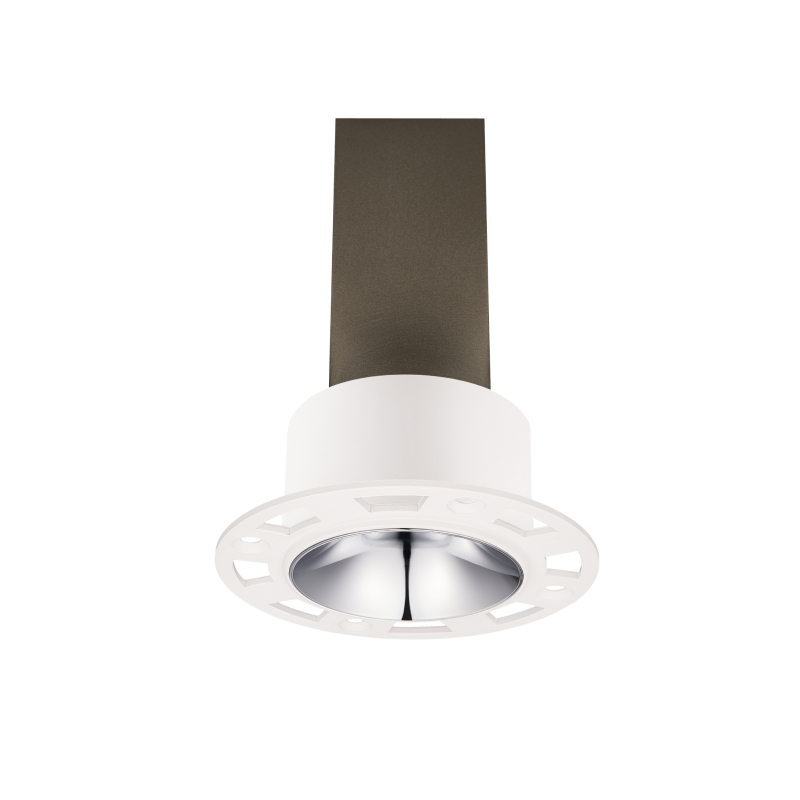

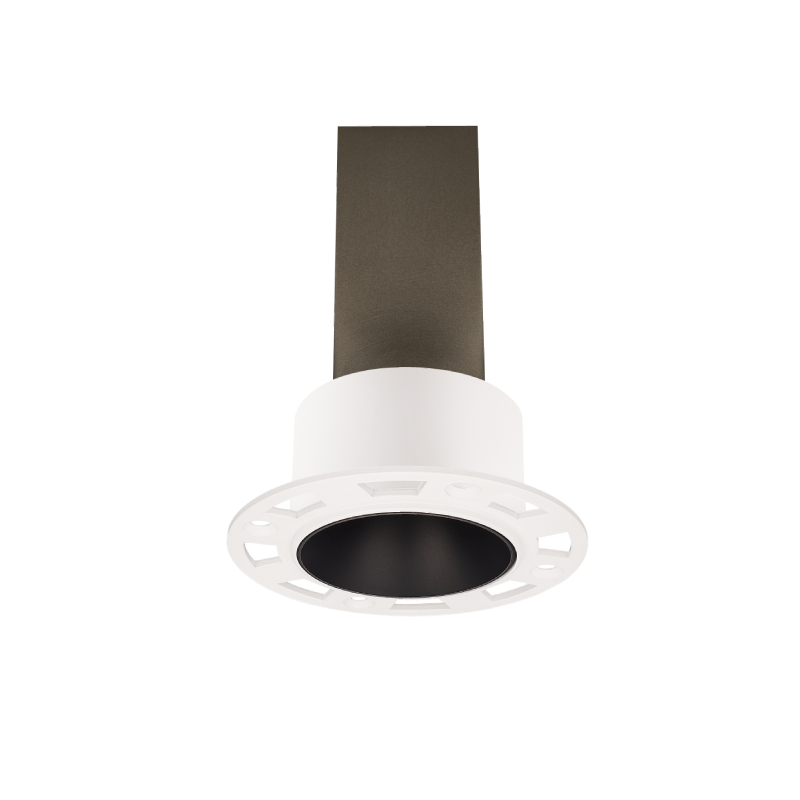

Trimless Downlight With Pre-Embedded Parts, Fixed The Pre-Embedded Parts On The Ceiling Firstly,Then Recessed The Led Downlight Mould Into The Ceiling.

Both Regular Type Downlight And Trimless Downlight, All With a Easy Pull-Out Led Mould Design,Which Are Convenient For Maintenance In The Future.

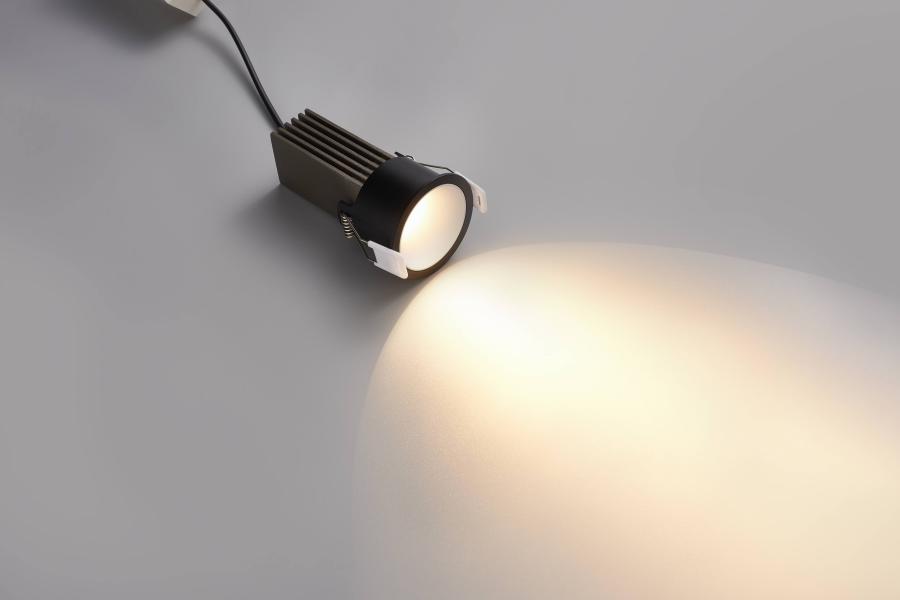

Led Downlight









Application

Suitable For Commercial And Residential Lighting Like Hotels, Restaurants,  Offices, Villas,Clubs, Shops And Homes.Etc.
