Specification
| Model No. |
SL-XQ507512 01 |
SL-XQ507512 02 |
| Watt (±10%) |
8W |
8W |
| 12W |
12W |
| Dimension |
Φ85*H84mm |
Φ85*H84mm |
| Cutout |
ø75mm |
ø75mm |
| CCT |
2700K/3000K/3500K/4000K/5000K |
| CRI |
Ra90/Ra95 |
| IP Rating |
IP65 |
| Install style |
Recessed |
| Optional Control |
Triac/0-10V/DALI |
| Operating temperature |
-20℃-+40℃ |
| Beam Angle |
15°/24°/36°/50° |
| Ouput voltage |
220-240V 50/60Hz |
| Material |
Die-Casting Aluminum |
| Control |
On/Off |
| Housing Color |
White/Black |
| Certificate |
CE |
| Warranty |
3 years |
| Applications |
Hotels,Villa,Culbs, Restaurants, Offices, Shops, Home,etc. |
Features

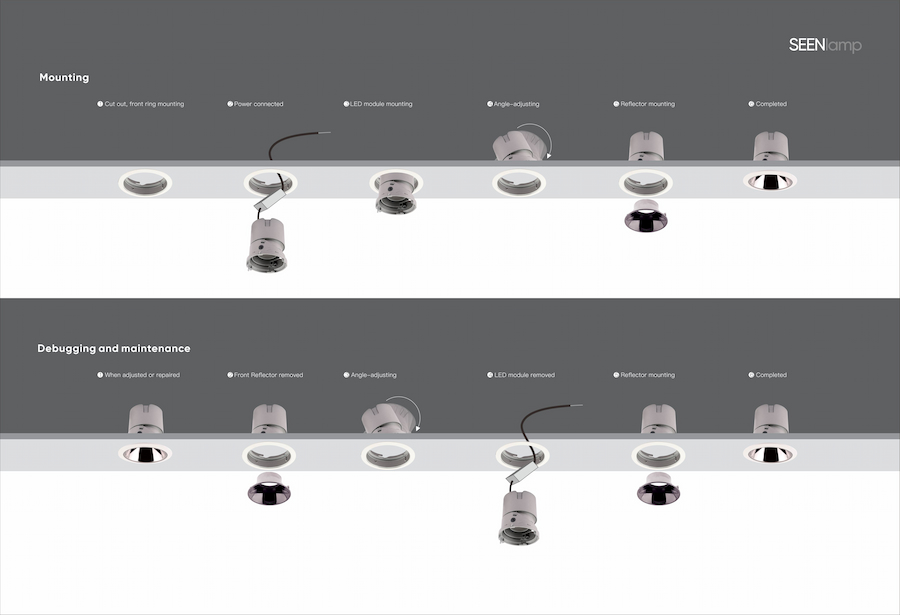

- Modular Design, Pre-Embedded Front Frame,It Is Easy For Debugging And Maintenance, No Damage For The Ceiling Painting .

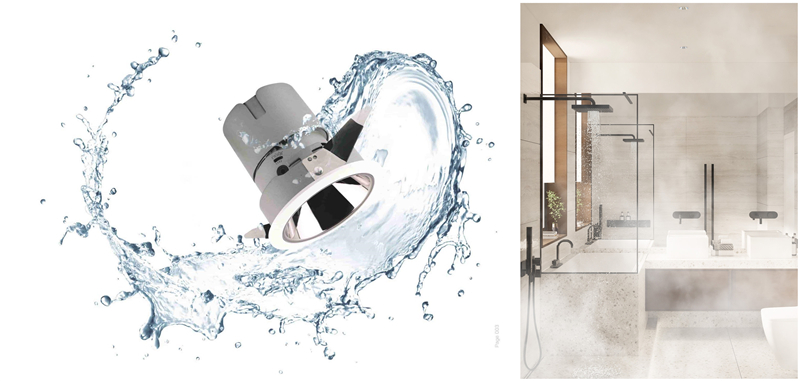

- Waterproof Screw, Waterproof Rubber Ring Double Protection,Ip Rating Up To IP65 ,Suitable For Bathroom Lighting.
- Ra90/95 High Color Rendering Is More Realistic, Restores The True Color Of The Subject.
- CCT Range 2700K/3000K/3500K/4000K/5000K/5500K,Easy to Create Different Atmospheres According To The Different Needs Of The Space.

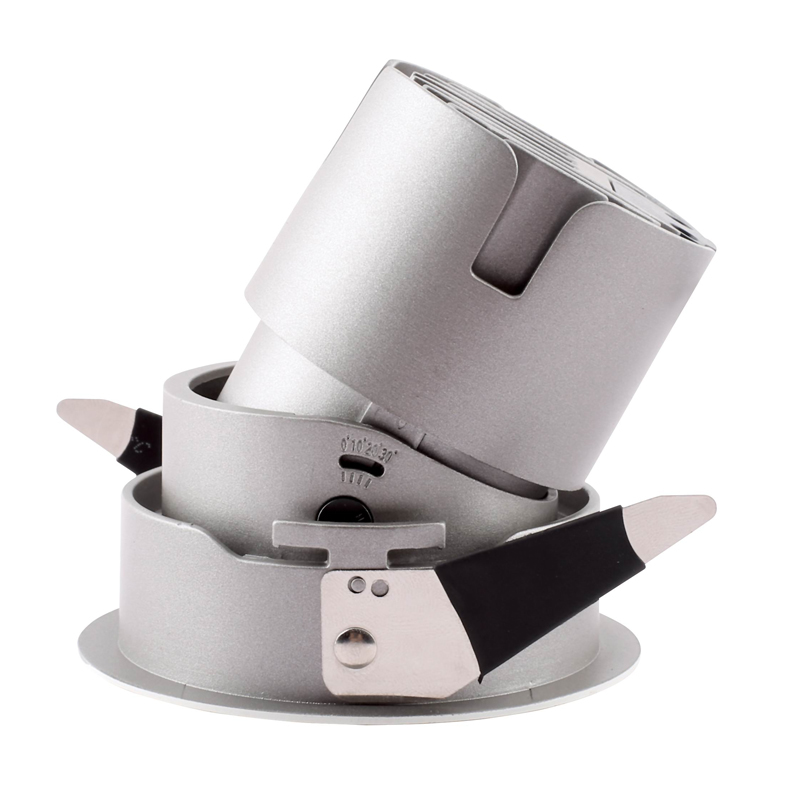

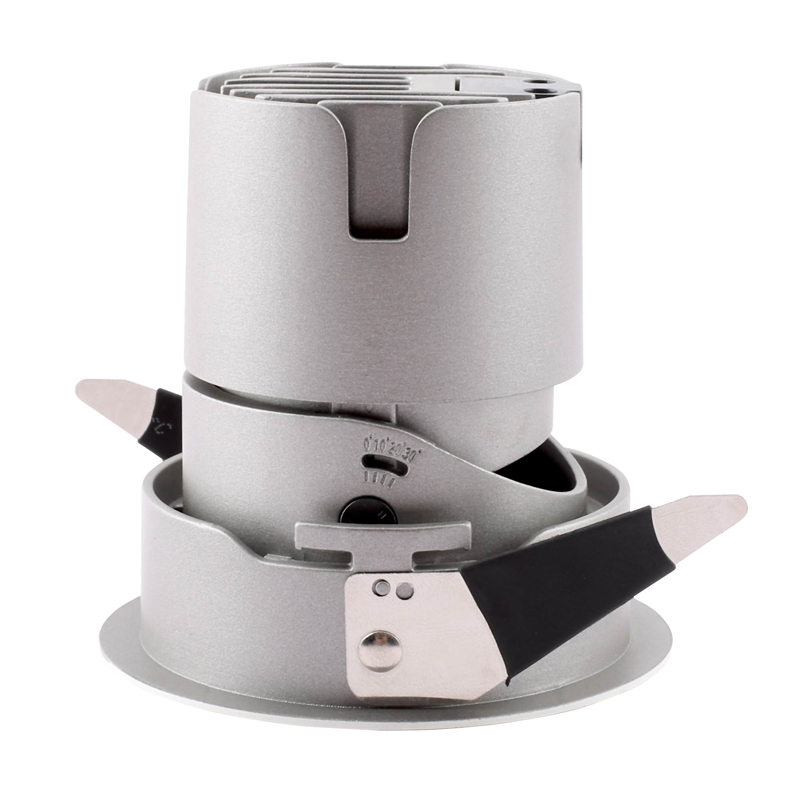

- Adjustable Downlight Design, Lamp Body 355° Horizontally Rotatable,0° ～ 30° Tilting.
- Colorful Buffle For Choose According To Room Decoration Style,Sand Silver/Sand Gold,Gross White/Gross Black, And UV Electropaint Darken Nickel/Gold/Chrome For Choose.
- Using International Famous Brand Led Chip With High Brightness, Long Life, Small Light Decay, And Good Heat Dissipation Effect.
- Optical Flexibility 15/24/36/50 Degree Beam Angle, Optic Lens High Transmittance ,Provide Soft Light, Wide Application Range .

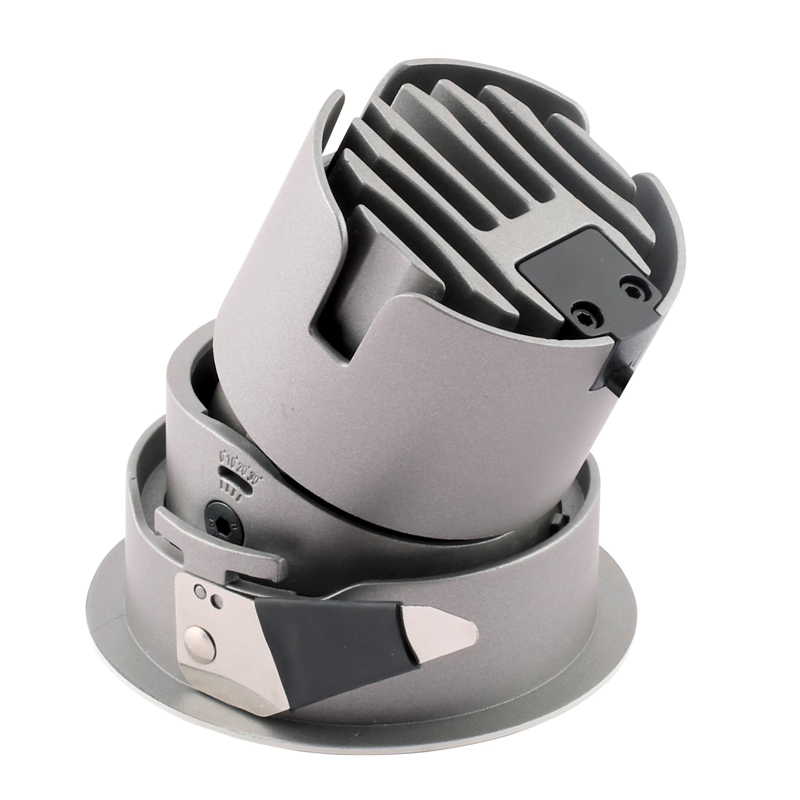

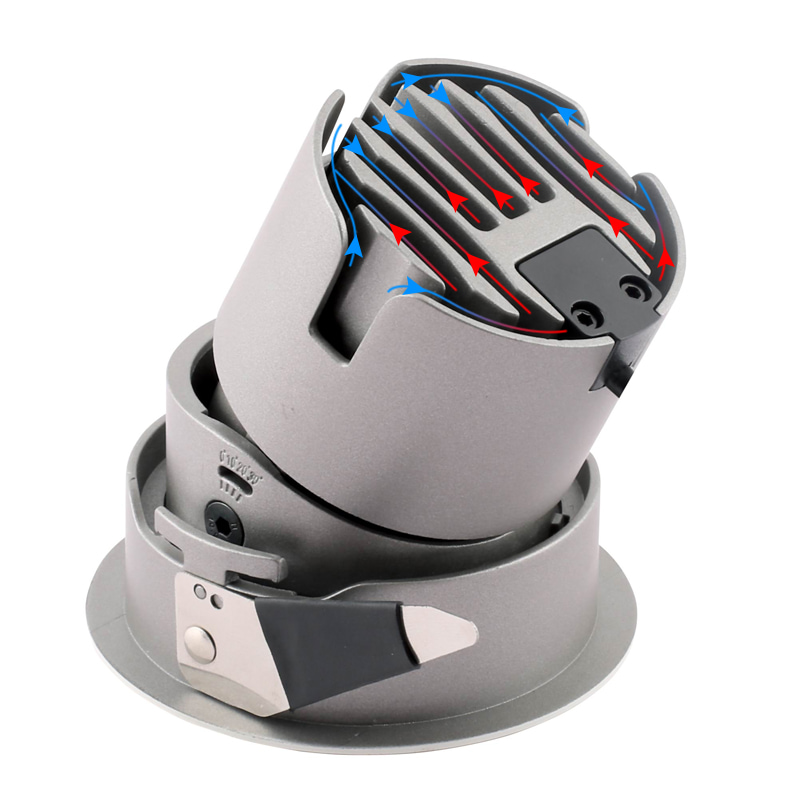

- Die-Casting Aluminum Lamp Housing ,Long-Term Pressure Is Not Easy To Deform, Durable, Anti-Corrosion And Anti-Rust. High Quality Aluminum Heat Sink With Excellent Thermal Dissipation.
- UGR≦16 Ultra Low Glare, Anti-Glare Design To Protect Eyes From Dazzling Lighting,Led Source Deep Hide ,Darken Nickel Color Reflector No Dazzl Lighting.
- Constant Current Driver Output With Flicker Free,Led Driver Efficiency 85-90% ,Provide Uniform Light, Comfortable Visual Experience .
- CCT Changeable By Switch On Led Driver ,With 3000K 4000K 5000K -3 Color Temperature In 1 Lamp For Options To Meet The Needs Of Different Scene Styles .

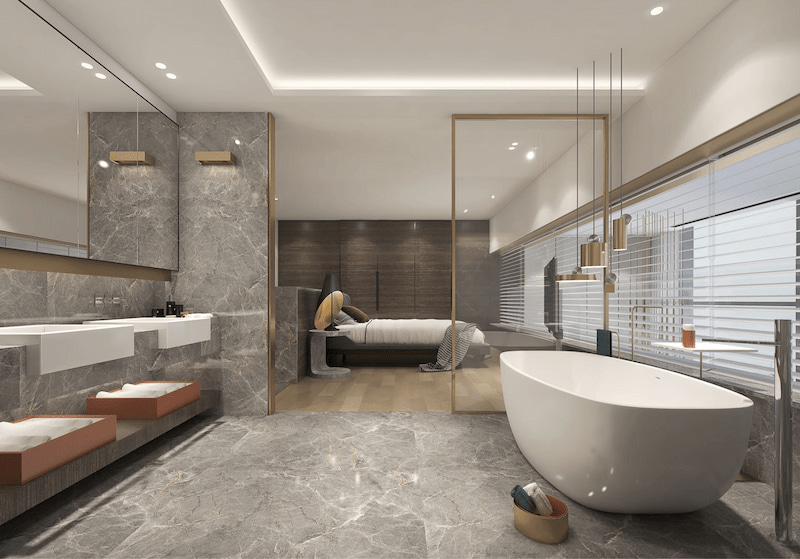

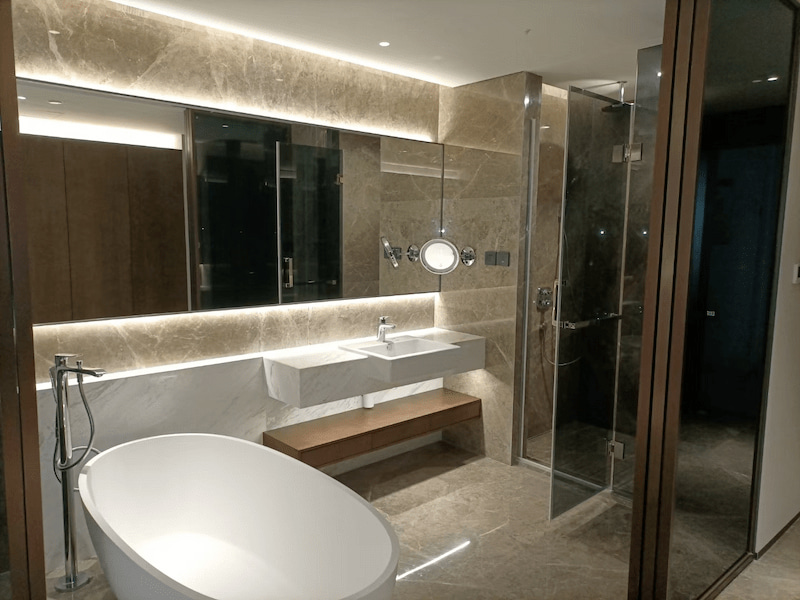

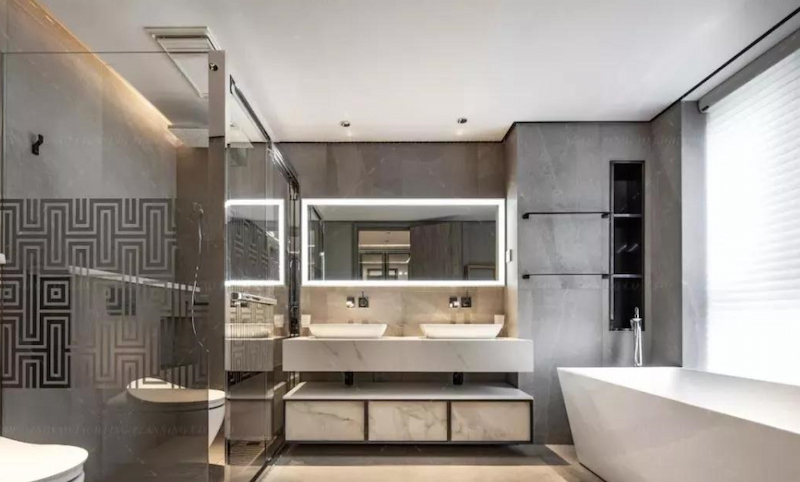

Application Scenarios
Widely Used In Bathroom,Kitchen,Baconlly, Hallway,Booth,etc. Commercial And Residential Lighting.
