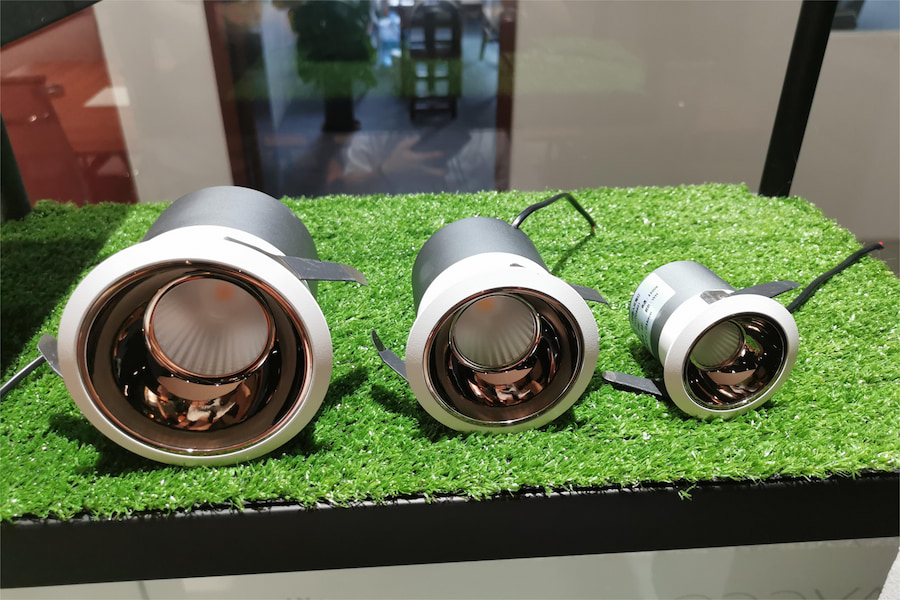

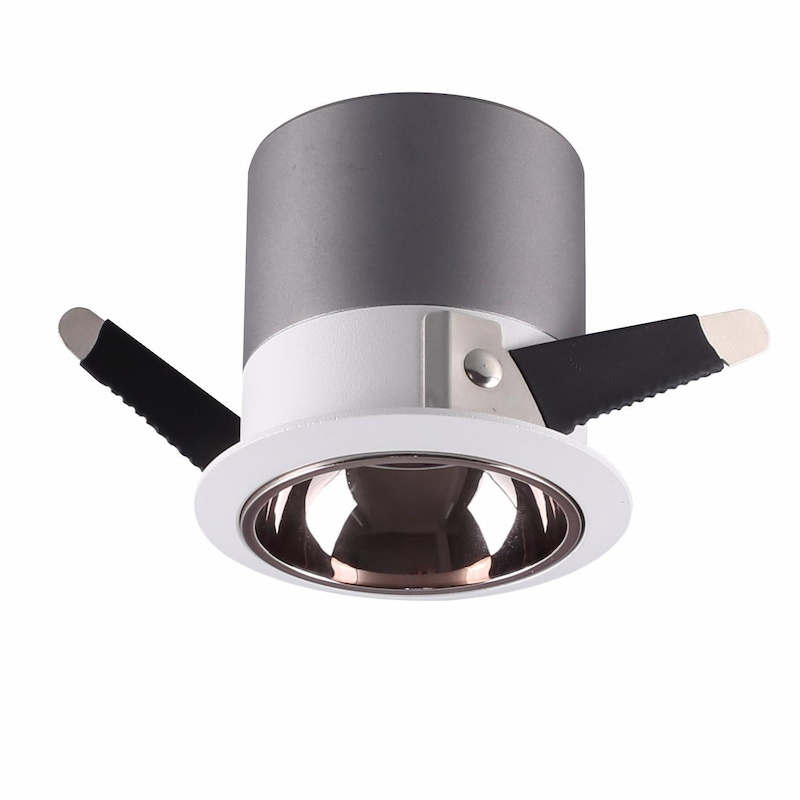

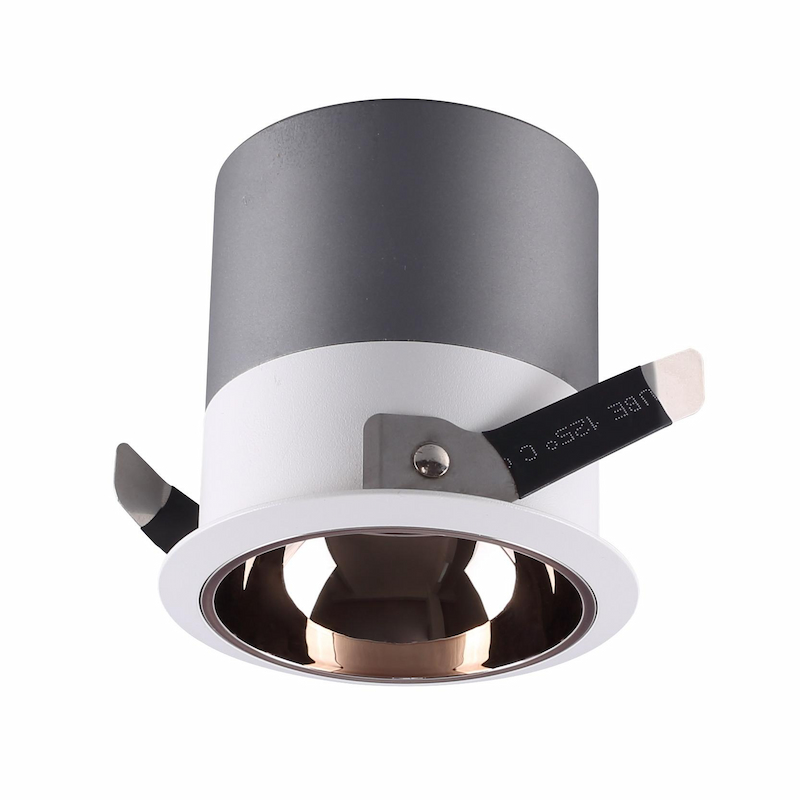

Recessed Led Downlight Indoor Lighting Deep Anti Glare Narrow Trim 7W 12W 20W

  1. Anti Glare Reflector Electroplating Nickel Color,No Dazzling Light.
  2. Optical Flexibility 20/30/45 Degree Beam Angle.
  3. Excellect Surface Finish With Sand White Or Sand Black Frame Color .
  • Item No :

    Recessed Downlight
  • Order(MOQ) :

    50pcs
  • Lead Time :

    7-15days

Spefication

Model No. SL-TD8801 SL-TD8802 SL-TD8803
Watt (±10%) 5W 9W 15W
7W 12W 20W
Dimension Φ65*H65mm Φ85*H86mm Φ106*H100mm
Cutout ø55mm ø75mm ø95mm
CCT 2700K/3000K/3500K/4000K/5000K
CRI Ra90
IP Rating IP20
Install style Recessed
Optional Control Triac/0-10V/DALI
Operating temperature -20℃-+40℃
Beam Angle 20°/30°/45°
Ouput voltage 220-240V 50/60Hz
Material Aluminum
Control On/Off
Housing Color White/Black
Certificate CE
Warranty 3 years
Applications Hotels, Restaurants, Offices, Shops, Home,etc.



Product Features



Anti Glare Design

  • Elegant Shape Anti Glare Downlight With Narrow Trim Ceiling Recessed Installation.
  • Ani Glare Uv Electropaint Darken Nickel Finish Secondary Reflector No Dazzling .
  • Optical Flexibility 20/30/45 Degree Beam Angle.
  • Seenlamp Factory Provide Total 3 Size For Achieve Power From 7w To 20w .



Material

  • High Quality Aluminum Heat Sink With Excellent Thermal Dissipation.
  • Excellect Surface Finish With Sand White Or Sand Black Frame Color .



Led Chip

  • High Color Rendering Index 90.Provide a Ture Color Persenting And Vivid View Of The World.
  • Widely CCT Range 2700K/3000K/3500K/4000K/5000K/5500K For Customers To Choose From .
  • Using International Famous Brand Led Chip Import From Usa Or Japan,With High Brightness, Long Life, Small Light Decay, And Good Heat Dissipation Effect.



Led Driver

  • Constant Current Driver Output With Flicker Free, PF 0.9,Provide High Work Efficiency And Stable Performance.
  • Suitable For Triac Dimming, 0/1-10V And Dali Dimming Smart Control System.





Application

Widely Used In Hotels, Restaurants, Shopping Mall, Offices, Supermarkets,Perfect Design For Commercial Lighting And Residental Lighting .
