Specification
Model No. |
SL-XQ105506 01 |
SL-XQ107508 01 |
SL-XQ110020 01 |
SL-XQ112530 01 |
Watt (±10%) |
5W |
8W |
15W |
25W |
7W |
12W |
20W |
30W |
Dimension |
ø55mm |
ø75mm |
ø100mm |
ø125mm |
Cutout |
ø66*H75mm |
ø86*H95mm |
ø110*H125mm |
ø135*155mm |
CCT |
2700K/3000K/3500K/4000K/5000K |
CRI |
Ra90 /95 |
IP Rating |
IP20 / IP44 |
Install style |
Recessed |
Optional Control |
Triac/0-10V/DALI |
Operating temperature |
-20℃-+40℃ |
Beam Angle |
15°/24°/36°/50° |
Ouput voltage |
220-240V 50/60Hz |
Material |
Die-Casting Aluminum |
Control |
on/off |
Housing Color |
White/Black |
Certificate |
CE |
Warranty |
3 years |
Applications |
Hotels, Villa,Restaurants, Shops, Offices, Supermarkets,and Residental lighting etc. |
Features:
- Modular Design, Pre-Embedded Front Frame,It Is Easy For Debugging And Maintenance, No Damage For The Ceiling Painting .

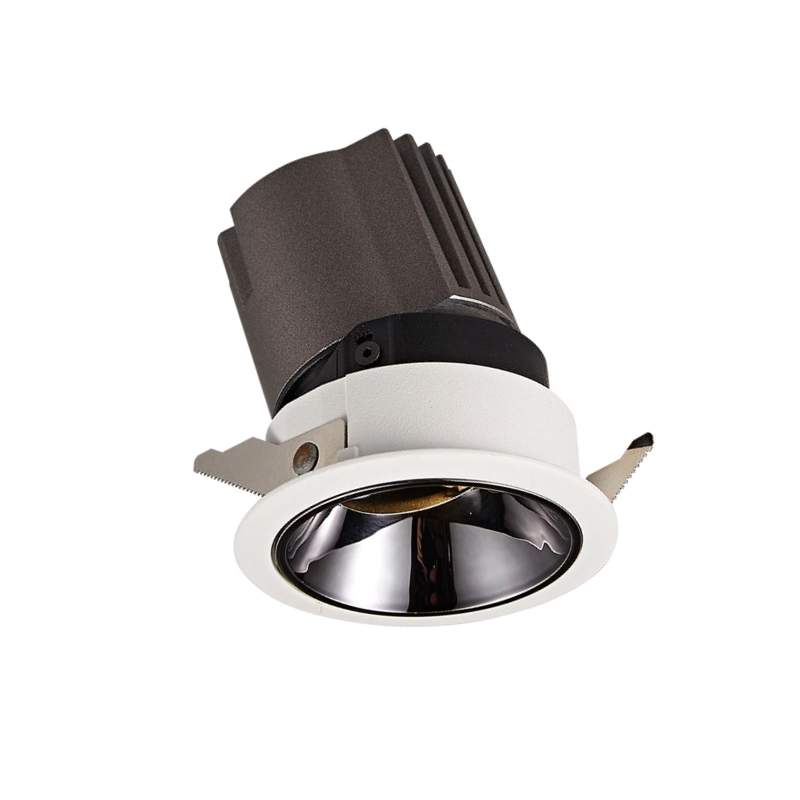

- Adjustable Downlight Design, Lamp Body 355° Horizontally Rotatable,0° ~ 30° Tilting.
- UGR≦16 Ultra Low Glare, Anti-Glare Design To Protect Eyes From Dazzling Lighting,Led Source Deep Hide ,Darken Nickel Color Reflector No Dazzl Lighting.

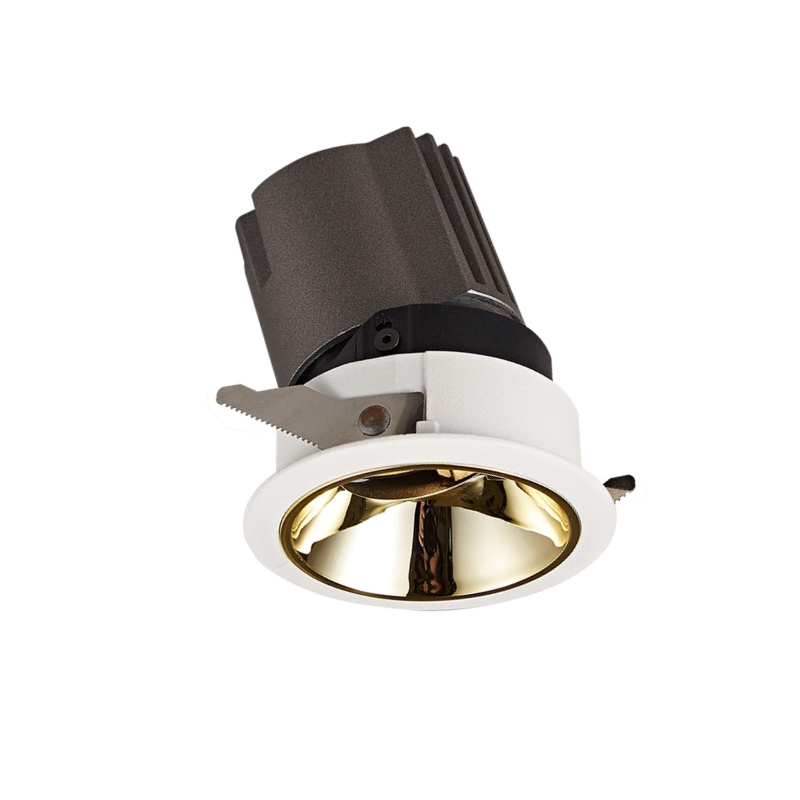

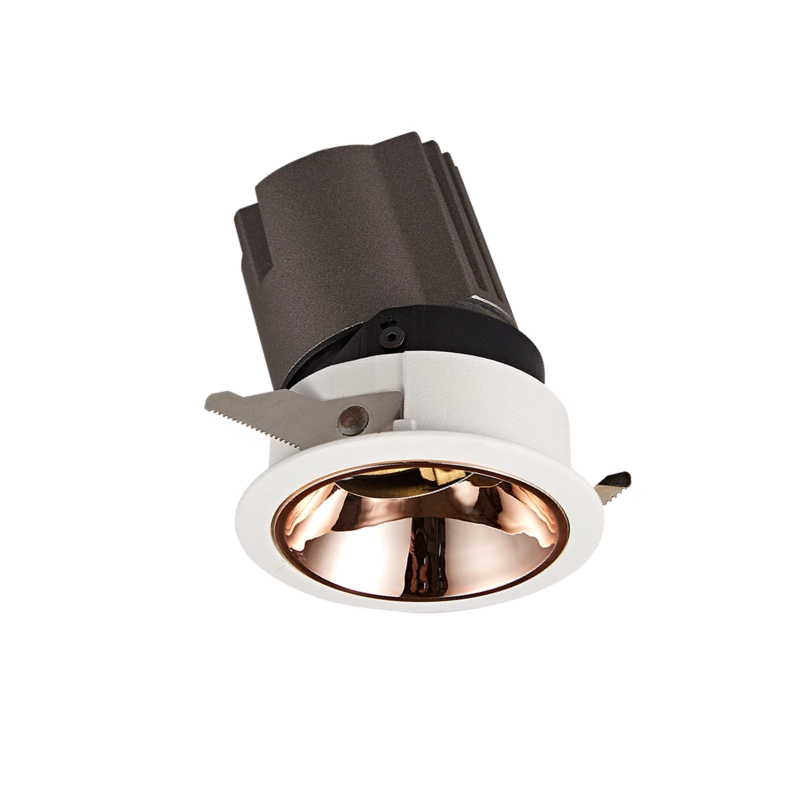

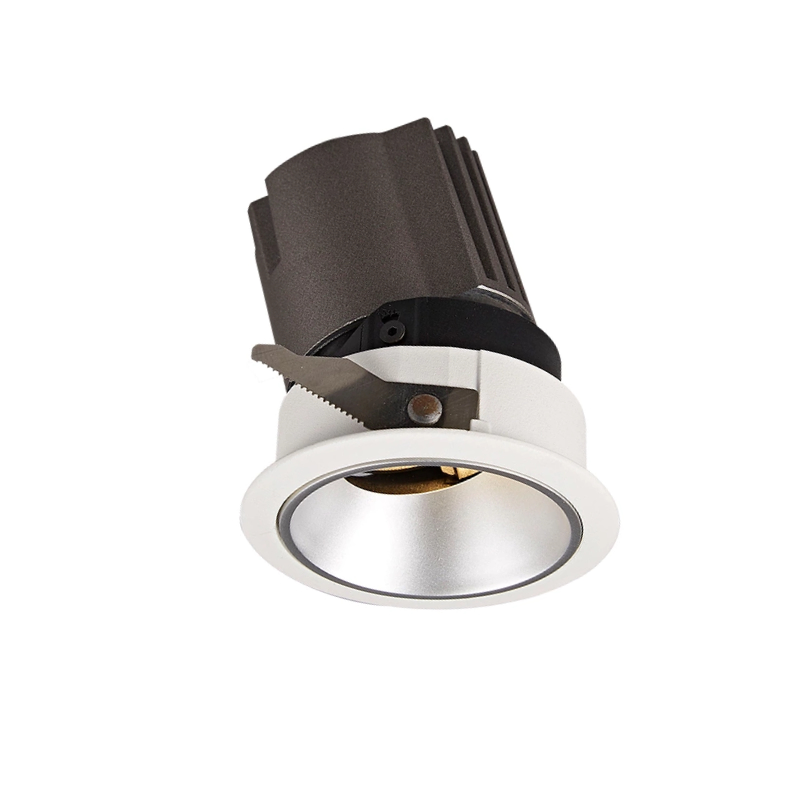

- Colorful Secondary Optic Reflector For Choose According To Room Decoration Style,Sand Silver/Sand Gold,Mass White/Black, And Uv Electropaint Darken Nickel/Gold/Chrome For Choose.
- Optical Flexibility 15/24/36/50 Degree Beam Angle, Optic Lens High Transmittance ,Provide Soft Light, Wide Application Range .
- Ra90/95 High Color Rendering Is More Realistic, Perfect For Paintings Lighting On The Wall .
- CCT Range 2700K/3000K/3500K/4000K/5000K/5500K,Create Different Atmospheres According To The Different Needs Of The Space.
- Using International High Quality Led ChipW ith High Brightness, Long Life,.
- Die-Casting Aluminum Lamp Housing ,Long-Term Pressure Is Not Easy To Deform, Durable, Anti-Corrosion And Anti-Rust.
- Constant Current Driver Output With Flicker Free,Led Driver Efficiency 85-88% ,Provide Uniform Light, Comfortable Visual Experience .
- CCT Changeable By Switch On Led Driver ,With 3000K 4000K 5000K -3 Color Temperature In 1 Lamp For Options To Meet The Needs Of Different Scene Styles .
- Seenlamp Hotel Sereis Adjustable Led Downlight ,Provide Total 4 Size For Cover the Wattage From 6w To 30w ,And Trimless Type For Optional Also.
Application Scenarios
Widely Use In Commercial And Residential Lighting, Like Hotels, Villa,Culbs, Restaurants, Offices, Shops And Home, Etc.
